Von der CADSD-Didge(R)Evolution Projektierung zur CNC-Fertigung –

Erster CADSD/CNC Didgeridoo- Prototyp…

From CADSD-Didge(R)Evolution to CNC-carving – First CADSD to CNC Didgeridoo Prototype…



Über dieses Didge Projekt:
Dieses Didgeridoo (genannt „The Slugger“ weil es aus Esche gefertigt wurde und aussieht wie der Louisville Slugger Baseball Schläger) wurde für contemporär percusiv/polyphonische Spielstile projektiert. Seine Energie wird dem Namen gerecht.

About the didge:
This didge (called “The Slugger” because the CNC prototype is made of Ash and looks like the Louisville Slugger baseball bat) was designed for contemporary percussive/polyphonic playing styles, and its power lives up to its name!ype…















 Rote Peaks: Klangspektrum des Grundtones (Obertonreihe des Grundtones)
Schwarze Peaks: Impedanzspektrum (Reihe der anspielbaren Töne)
Graue Peaks: Spektrum der kumulierten gewichteten Impedanzen der zur jeweiligen Frequenz gehörigen Obertöne


Das Interessante an diesem Entwurf ist die Projektierung zusätzlicher zu den Eigenresonanzen anspielbarer Töne (Pseudo Toots und Drop Drones, graue Peaks) durch Maximierung der Impedanzen der zu diesen Zusatztönen gehörigen Obertöne (Maximierung der „Harmonität“). Harmonität bedeutet, dass Impedanz-Häufungen für ein oder mehrere Obertöne einer bestimmten Frequenz existieren (graue Peaks). Z.B., ist der der Zusatzton A (graues A) anspielbar, weil der 1.Oberton dieser Frequenz durch den 3. schwarzen Impedanzpeak A (erste Oktave), der 4.Oberton dieser Frequenz durch den 6.schwarzen Impedanzpeak A (zweite Oktave) und der 5.Oberton dieser Frequenz durch den 7.schwarzen Impedanzpeak C# unterstützt werden. Der 1.graue Peak D liegt eine Oktave unter dem Grundton 1.schwarzer Peak D.



The interesting experiment of this design was to maximize the playability of three special false tones/pseudo toots, i.e., notes which do not have an impedance peak at their fundamental but which have a high degree of “harmonicity” (the grey peaks on the graph).

Harmonicity means that there are impedance peaks for one or more of the harmonics of a given frequency. For instance, look at the “A” note written in grey on the graph. Although there is no black impedance peak at that frequency, notice that there is an impedance peak (as indicated by a black peak) at the “A” note one octave above the original “A”. The first harmonic in the harmonic series is one octave, so that gives the grey “A” some harmonicity. Also notice there is another “A” with an impedance peak the next octave up—this is the third harmonic of the grey “A” false note (“false” because even though it has no black impedance peak at its fundamental frequency, with extra lip control it can be made to sound convincingly like an actual tone). Finally, the “C#” with high backpressure is also a harmonic of the false “A”. The more harmonics there are with backpressure, the higher the grey summation peaks. (Notice that the first very pronounced grey peak is below the drone/fundamental and is therefore a pseudo-drone/drop drone.)



Fertigung des Didges auf einer computergesteuerten CNC-Fräsbank...
Übertragung der projektierten Didge Maße direkt aus dem CADSD Directed Evolution Prozess in die 3D Modellierungssoftware der CNC-Fräsbank.

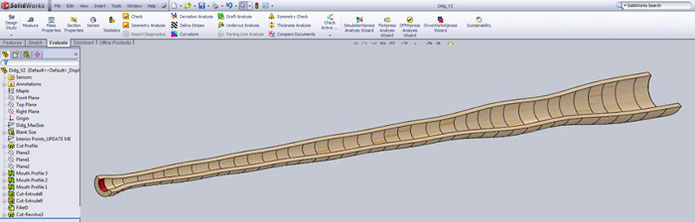

Screenshot der 3D Modellierung und Toolpathing-Software (SolidWorks und Aspire)

Building the didge on a computer-controlled router table
The first step was to take the dimensions arrived at through the CADSD directed evolution process and enter them into the 3D modeling software to be used by the CNC router.
Here is a screen shot from the 3D modeling and toolpathing software (SolidWorks and Aspire)



Fertigungs Prozess / The carving process



6cm x 28cm x 244cm Esche Tafel auf der CNC Fräsbank (Super Star M30) und ausgefräste Innenform



6cm x 28cm x 244cm Ash slab on CNC router table (Super Star M30) and carving the inside








Bearbeitete Außenform / Carving the outside /



Fertige Halbschalen / Final pass complete




 Videos:






Fertigstellung / The finish work:

I





nnenversiegelung (vorher, nachher) und Halbschalen verklebt... ein neues Instrument ist geboren! Das erste seiner Art.



Sealer, before and after... Glue-up completed... And a new instrument is born! First of its kind.








Außen geschliffen, bereit für die Oberflächenbehandlung, dem letzten Arbeitsschritt.



Outside sanded, ready for finish coats...



Soundbeispiel:

Spektrale Analyse des neuen Instruments:

 Blaue Peaks: Impedanz Spektrum (Lage der Eigenresonanzen) durch geschlossenes Anschlagen mit der flachen Hand auf das Mundstück angeregt.



 Orange Peaks: Obertonspektrum des Grundtones durch Anspielen des Grundtones angeregt


Das Ergebnis stimmt sehr gut mit den projektierten Eigenschaften überein. Dieses Didge ist vom Grundton bis zum 5.Toot (D,D,A,D#,F#,A) mit gutem Gegendruck zu spielen. Als besonderer Bonus sind für geübte Spieler mit guter Kontrolle der Lippenspannung die drei zusätzlich projektierten Zusatztöne (Drop drone D und Pseudo-toots A,F#) anspielbar.



Das erste CNC-Fertigungs-Experiment war ein Erfolg. Trotzdem sind mehr Experimente notwendig, um den Fertigungs-Prozess effizienter und noch präziser zu gestalten.



Dank an: Dr. Frank Geipel, Entwickler der CADSD directed Evolution, Eric Krepela und Scott Mahoney bei CNC Router Services in Murray, Utah, und Bobby Gittins, "the finish guy".

After the didge-building was completed, we performed a spectral analysis of the new instrument.
To see the fundamental and its harmonics, you play the drone as usual; all harmonics sound simultaneously. But, interestingly, to see the intrinsic resonances, you slap the palm of your hand on the mouthpiece and hold; all the intrinsic resonances sound simultaneously. We overlaid the two spectra into one image so that they can be more easily compared. The result matches the prediction. It plays nicely, with plenty of backpressure on the drone and five toots, and, like a hidden prize, three very resonant and convincing “false tones” or “pseudo toots” for the player who can find their sweet spots with extra lip control.

The first CNC build experiment was a success, but more builds are necessary to hone the process. In future builds, we will be exploring more efficient CNC carving techniques to minimize machine time and maximize precision.

Thanks to: Dr. Frank Geipel, creator of CADSD, Eric Krepela and Scott Mahoney at CNC Router Services in Murray, Utah, and Bobby Gittins, “the finish guy”.
